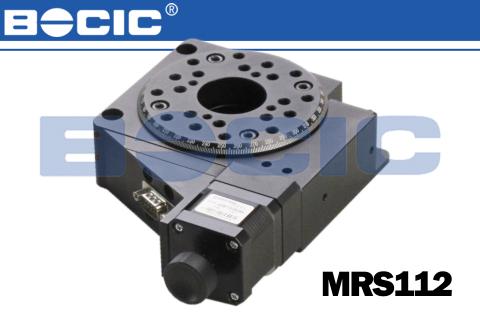

MRS110 series motorized precision rotary stages
1. The rotary stage incorporateshigh precision THK rotation systems.
2.The transmission adopts worm and worm gear structures.
3.Zero position photoelectric switches can be added.
4.Servo motors can be used instead of stepper motors.
5.Controller uses standard RS232 interface.
- description
- parameters
|
Model |
MRS112 |
MRS113 |
|
Stage size（mm） |
φ100 |
φ200 |
|
180:1 |
||
|
Resolution |
0.0002° |
|
|
Resetting positioning accuracy |
＜0.005° |
|
|
Radial runout（μm） |
＜15 |
|
|
Axial run out（μm） |
＜15 |
|
|
Maximum speed |
25°/s |
|
|
Stepper motor（1.8°） |
42 stepper motor |
56 stepper motor |
|
Loading capacity(kg) |
35 |
60 |
|
Weight（kg） |
2.1 |
7.4 |
