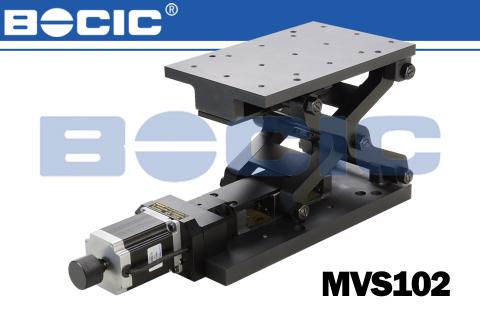

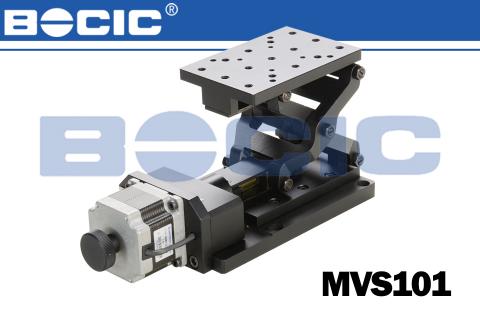

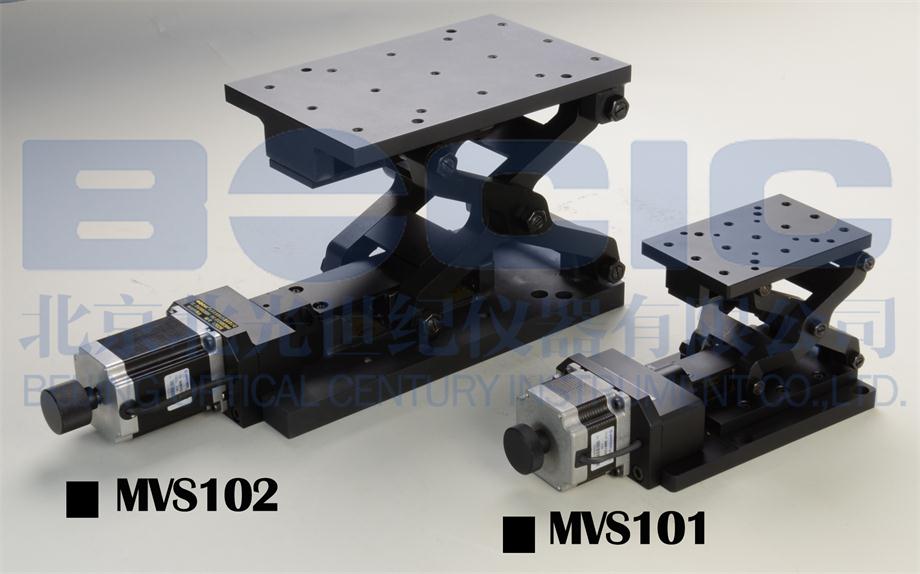

MVS100 series motorized vertical translation stages
1.The stage adopts a scissor-type support
and high precision ballscrew actuation.
2.It ensures smooth and reliable
operation with high precision and large bearing capacity.
3.Zero position
photoelectric switch is included. Travel limit switches are located at both ends
of the stage for accurate positioning and protection.
- description
- parameters
|
Model |
MVS101 |
MVS102 |
|
Travel（mm） |
55 |
100 |
|
Table size (mm） |
80×120 |
150×230 |
|
Resolution（mm） |
0.01 |
|
|
Maximum speed (mm/s) |
20 |
20 |
|
Resetting positioning accuracy (mm） |
0.02 |
0.03 |
|
Loading capacity(kg) |
10 |
20 |
|
Stepper motor（1.8°） |
56stepper motor |
|
|
Weight（kg） |
2 |
12 |
